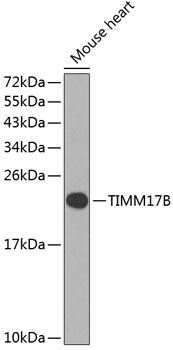

Western blot analysis of extracts of mouse heart, using TIMM17B antibody (23-611) at 1:1000 dilution.<br/>Secondary antibody: HRP Goat Anti-Rabbit IgG (H+L) at 1:10000 dilution.<br/>Lysates/proteins: 25ug per lane.<br/>Blocking buffer: 3% nonfat dry milk in TBST.<br/>Detection: ECL Enhanced Kit.<br/>Exposure time: 90s.
Western blot analysis of extracts of mouse heart, using TIMM17B antibody (23-611) at 1:1000 dilution.
Secondary antibody: HRP Goat Anti-Rabbit IgG (H+L) at 1:10000 dilution.
Lysates/proteins: 25ug per lane.
Blocking buffer: 3% nonfat dry milk in TBST.
Detection: ECL Enhanced Kit.
Exposure time: 90s.

TIMM17B Antibody

CATALOG NUMBER: 23-611

Clonality:
Polyclonal
Tested Applications:
WB
Host Species:
Rabbit
Species Reactivity:
Mouse
Conjugate:
Unconjugated
Specifications
Host Species:
Rabbit
Species Reactivity:
Mouse
Immunogen:
Recombinant fusion protein containing a sequence corresponding to amino acids 1-172 of human TIMM17B (NP_005825.1).
Conjugate:
Unconjugated
Tested Applications:
WB
Application Note:
WB: 1:500 - 1:2000
Positive Control 1:
Mouse heart
Predicted Molecular Weight:
Observed: 18kDa
Purification:
Affinity purification
Clonality:
Polyclonal
Isotype:
IgG
Physical State:
Liquid
Buffer:
PBS with 0.02% sodium azide, 50% glycerol, pH7.3.
Concentration:
batch dependent
Storage Conditions:
Store at -20°C. Avoid freeze / thaw cycles.
Ncbi Official Symbol:
TIMM17B
Additional Names:
DXS9822, JM3, TIM17B, mitochondrial import inner membrane translocase subunit Tim17-B, inner mitochondrial membrane preprotein translocase, translocase of inner mitochondrial membrane 17 homolog B
Ncbi Gene Id Number:
10245
User Note:
Optimal dilutions for each application to be determined by the researcher.
Background:
This gene encodes a multipass transmembrane protein that forms an integral component of the mitochondrial translocase TIM23 complex. This complex facilitates the transport of mitochondrial proteins from the cytosol across the mitochondrial inner membrane and into the mitochondrion. There is a pseudogene for this gene on chromosome 12. Alternative splicing results in multiple transcript variants.

FOR RESEARCH USE ONLY

For additional information, visit ProSci’s Terms & Conditions Page.

Disclaimer:
Optimal dilutions/concentrations should be determined by the end user. The information provided is a guideline for product use. This product is for research use only.

CATALOG NUMBER:

23-611

List Size:
100 uL

List Price:

$436.00

Datasheet
Shipping Info

$65 Standard Overnight flat rate for as many products shipped within the United States.

$35 Dry Ice Shipment fee may be required on some items.

Note: Online orders only accepted for shipment within the USA. Click here for the list of international distributors.

Customize your order

Bulk Pricing Available

Custom Formulations: azide free, endotoxin testing & endotoxin removal.

Pair your antibody with a Lysate, Peptide, Control, & /OR Secondary Antibody.

Contact our Customer Care Team for more information
