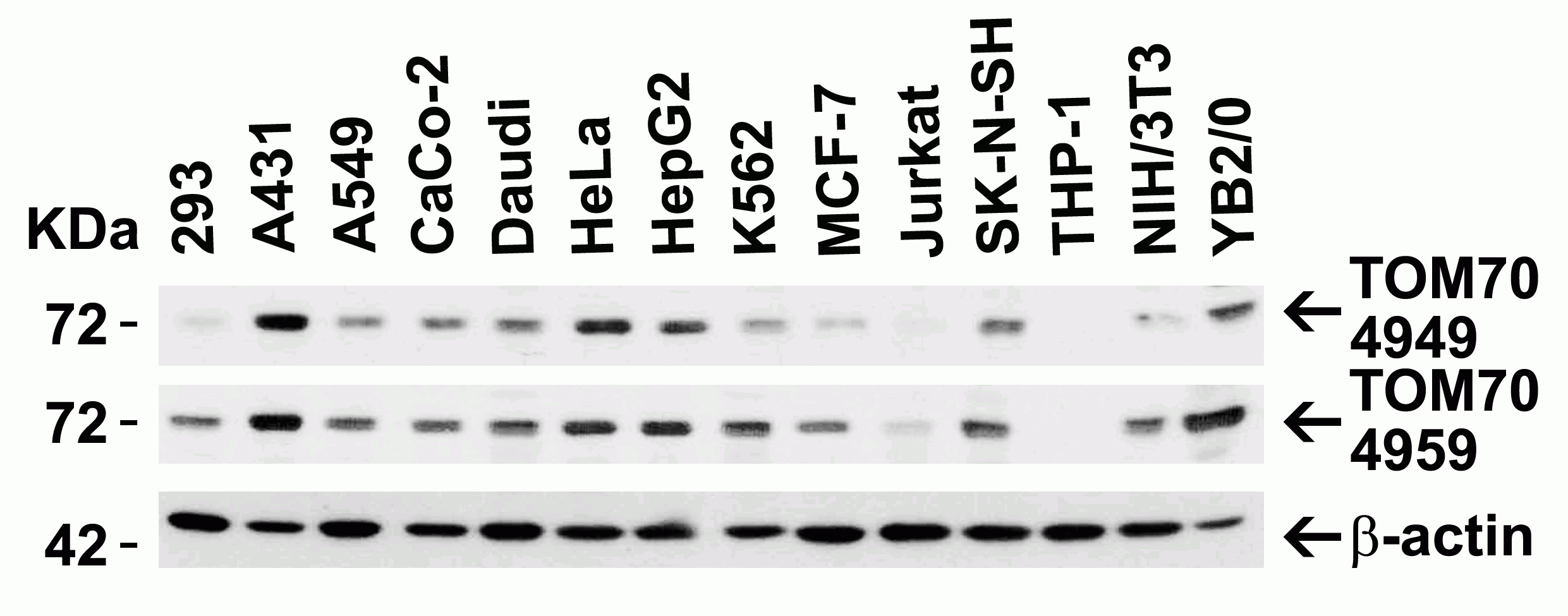

<strong>Figure 1 Independent Antibody Validation (IAV) via Protein Expression Profile in Human, Mouse and Rat Cell Lines</strong><br>Loading: 15 μg of lysates per lane.Antibodies: TOM70 4949 (2 μg/mL), TOM70 4959 (2 μg/mL) and beta-actin (1 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.

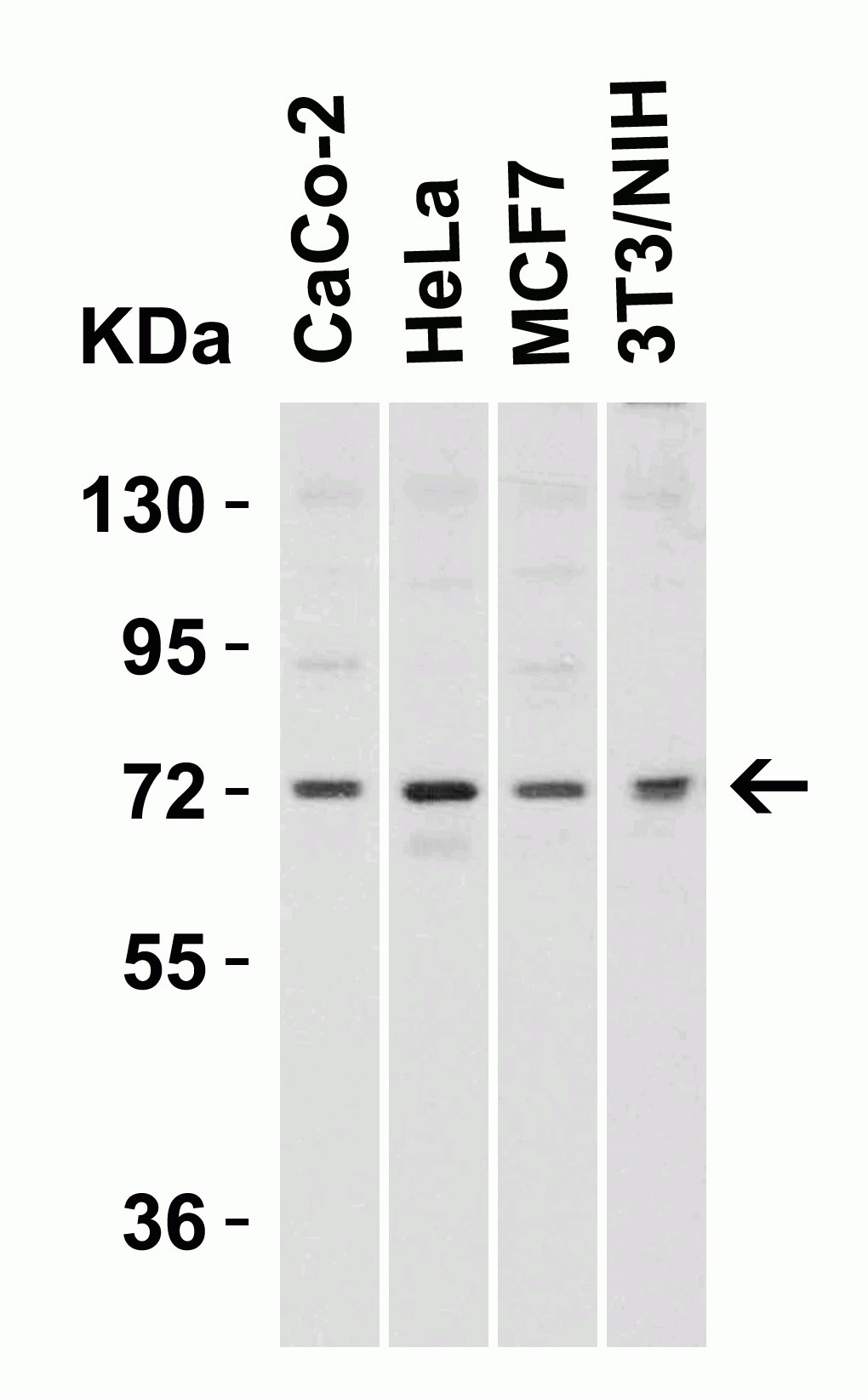

<strong>Figure 2 Western Blot Validation in Human and Mouse Cell Lines</strong><br>Loading: 15 μg of lysates per lane.Antibodies: TOM70 4959 (2 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.

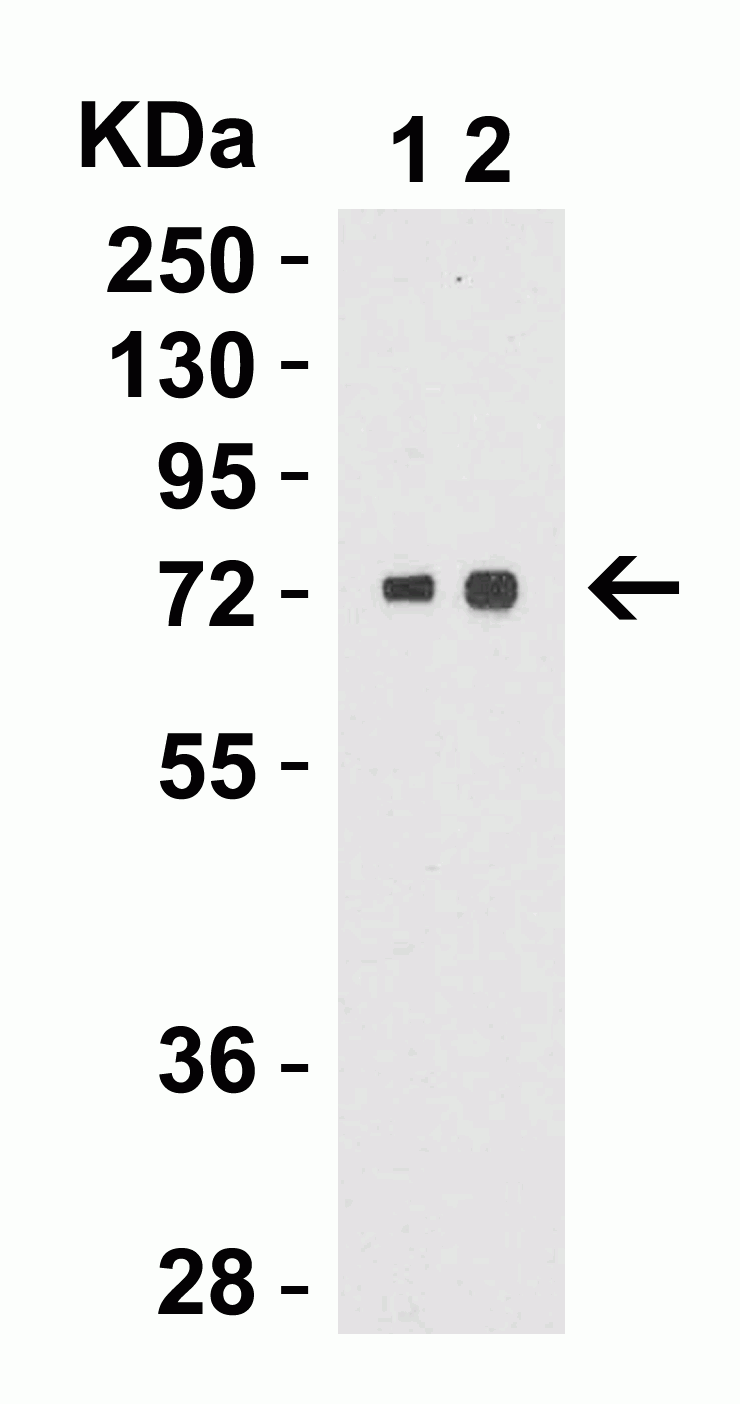

<strong>Figure 3 Western Blot Validation in Human Brain </strong><br>Loading: 15 μg of lysates per lane.Antibodies: TOM70 4959 (Lane 1: 1 μg/mL and Lane 2: 2 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.

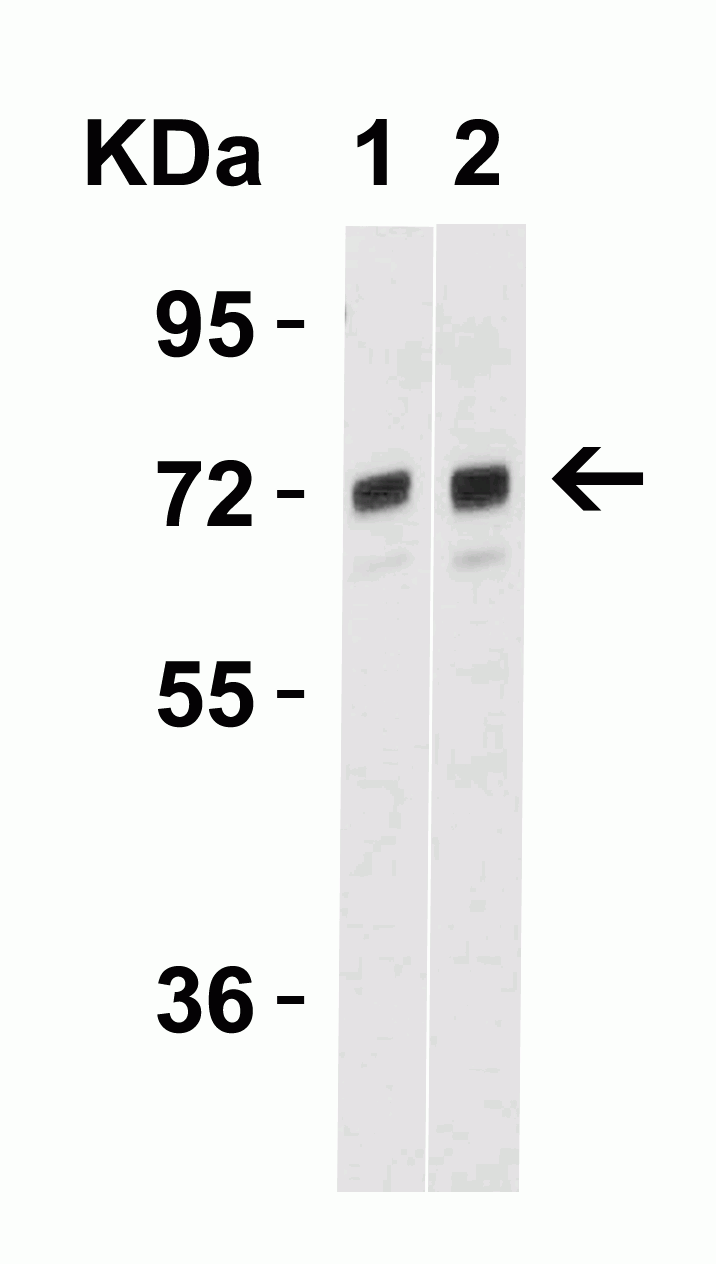

<strong>Figure 4 Western Blot Validation in Mouse Brain</strong><br>Loading: 15 μg of lysates per lane.Antibodies: TOM70 4959 (Lane 1: 1 μg/mL and Lane 2: 2 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.

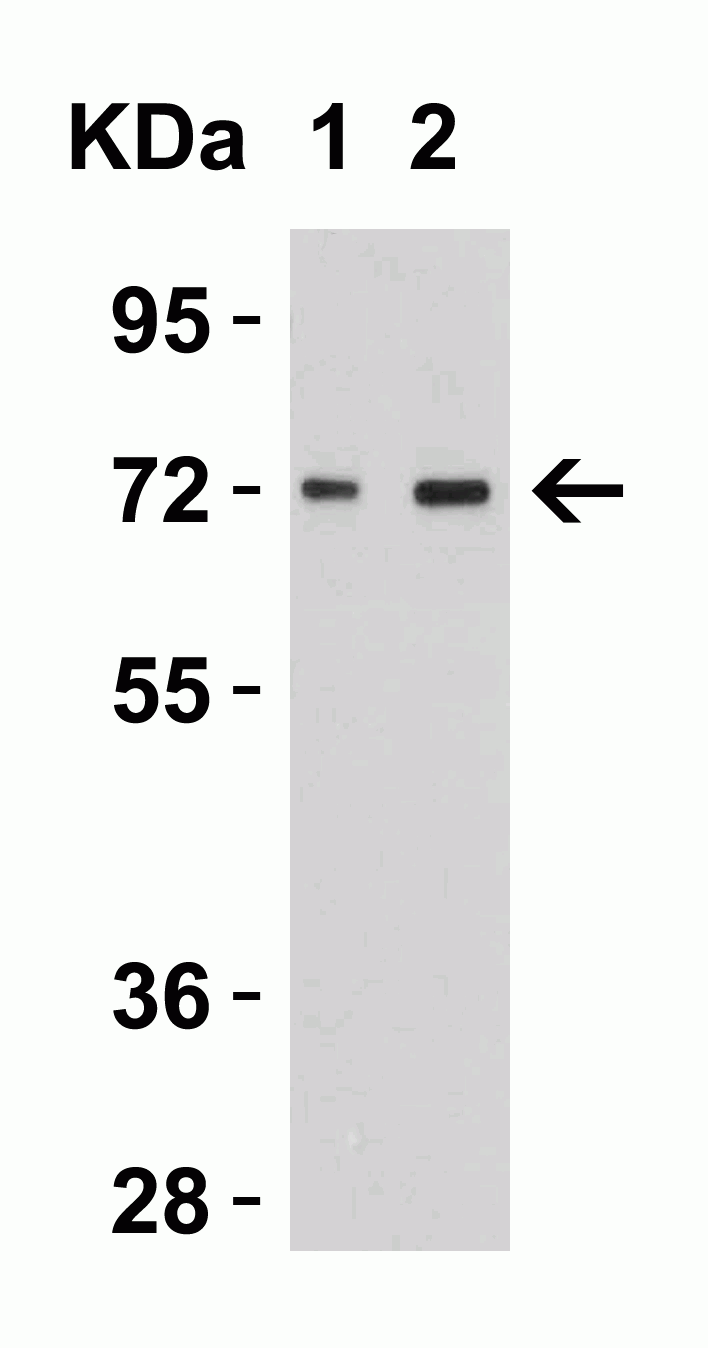

<strong>Figure 5 Western Blot Validation in Rat Brain </strong><br>Loading: 15 µg of lysates per lane.Antibodies: TOM70 4959 (A: 1 μg/mL and B: 2 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.
<strong>Figure 6 Immunohistochemistry Validation of TOM70 in Mouse Brain Tissue </strong><br> Immunohistochemical analysis of paraffin-embedded mouse brain tissue using anti-TOM70 antibody (4959) at 2.5 μg/ml. Tissue was fixed with formaldehyde and blocked with 10% serum for 1 h at RT; antigen retrieval was by heat mediation with a citrate buffer (pH6). Samples were incubated with primary antibody overnight at 4°C. A goat anti-rabbit IgG H&L (HRP) at 1/250 was used as secondary. Counter stained with Hematoxylin.
<strong>Figure 7 Immunofluorescence Validation of TOM70 in Mouse Brain Tissue</strong><br>Immunofluorescent analysis of 4% paraformaldehyde-fixed mouse brain tissue labeling TOM70 with 4959 at 20 μg/mL, followed by goat anti-rabbit IgG secondary antibody at 1/500 dilution (red).
Figure 1 Independent Antibody Validation (IAV) via Protein Expression Profile in Human, Mouse and Rat Cell Lines
Loading: 15 μg of lysates per lane.Antibodies: TOM70 4949 (2 μg/mL), TOM70 4959 (2 μg/mL) and beta-actin (1 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.
IAV
Trial Size

TOM70 Antibody

CATALOG NUMBER: 4959

Clonality:
Polyclonal
Tested Applications:
ELISA, IF, IHC-P, WB
Host Species:
Rabbit
Species Reactivity:
Human, Mouse, Rat
Conjugate:
Unconjugated
Specifications
Host Species:
Rabbit
Species Reactivity:
Human, Mouse, Rat
Immunogen:
Anti-TOM70 antibody (4959) was raised against a peptide corresponding to 15 amino acids near the center of human TOM70.
The immunogen is located within amino acids 220-270 of TOM70.
Conjugate:
Unconjugated
Tested Applications:
ELISA, IF, IHC-P, WB
Application Note:
WB: 1-2 μg/mL; IHC: 2.5 μg/mL; IF: 20 μg/mL.
Antibody validated: Western Blot in human, mouse and rat samples; Immunohistochemistry and Immunofluorescence in mouse samples. All other applications and species not yet tested.
Positive Control 1:
Cat. No. 1303 - Human Brain Tissue Lysate
Positive Control 2:
Cat. No. 1403 - Mouse Brain Tissue Lysate
Positive Control 3:
Cat. No. 1463 - Rat Brain Tissue Lysate
Positive Control 4:
Cat. No. 1202 - A431 lysate
Positive Control 5:
Cat. No. 1224 - Daudi lysate
Positive Control 6:
Cat. No. 1282 - 3T3/NIH lysate
Predicted Molecular Weight:
Predicted: 68kD
Observed: 72 kD
Validation:

Independent Antibody Validation in Cell lines (Figure 1) shows similar TOM70 expression profile in human, mouse and rat cell lines detected by two independent anti-TOM70 antibodies that recognize different epitopes, 4949 against N-terminus domain and 4959 against central domain.TOM70 proteins are detected in the most tested cell lines at different expression levels by the two independent antibodies.

Isoforms:
Human TOM70 has only one isoform (608aa, 67.5kD. Mouse TOM70 has one isoform (611aa, 67.6kD) and Rat TOM70 also has one isoform (610aa, 67.4kD). 4959 can detect human, mouse and rat.
Purification:
TOM70 Antibody is affinity chromatography purified via peptide column.
Clonality:
Polyclonal
Isotype:
IgG
physical-state:
Liquid
Buffer:
TOM70 Antibody is supplied in PBS containing 0.02% sodium azide.
Concentration:
1 mg/mL
Storage Conditions:
TOM70 antibody can be stored at 4°C for three months and -20°C, stable for up to one year. As with all antibodies care should be taken to avoid repeated freeze thaw cycles. Antibodies should not be exposed to prolonged high temperatures.
Ncbi Official Symbol:
TOMM70A
Additional Names:
TOM70 Antibody: KIAA0719, TOM70, Mitochondrial import receptor subunit TOM70, Mitochondrial precursor proteins import receptor
Protein Accession Number:
NP_055635
Protein Gi Number:
54607135
Ncbi Gene Id Number:
9868
User Note:
Optimal dilutions for each application to be determined by the researcher.
Background:
TOM70 Antibody: The translocase of outer mitochondrial membrane (TOM) complex is a multisubunit complex involved in the recognition, unfolding, and translocation of preproteins into the mitochondria. TOM70, an important member of the TOM complex, contains a tetratricopeptide repeat domain similar to those found in cytosolic chaperones such as Hsp90 and Hsc70 and provides a docking site for these proteins. This interaction is thought to be a critical first step in the TOM70-dependent mitochondrial import, followed by contact between the preprotein and TOM70. After targeting to TOM70, preproteins are translocated through the outer membrane via the TOM40 import pore complex. The precise mechanism of how preproteins progress from TOM70 to TOM40 to full translocation is still unclear. At least two isoforms of TOM70 are known to exist.
Background Reference 1:
Kutik et al. J. Cell Biol. 2007; 179:585-91.
Background Reference 2:
Young et al. Cell 2003; 112:41-50.

FOR RESEARCH USE ONLY

For additional information, visit ProSci’s Terms & Conditions Page.

Disclaimer:
Optimal dilutions/concentrations should be determined by the end user. The information provided is a guideline for product use. This product is for research use only.
