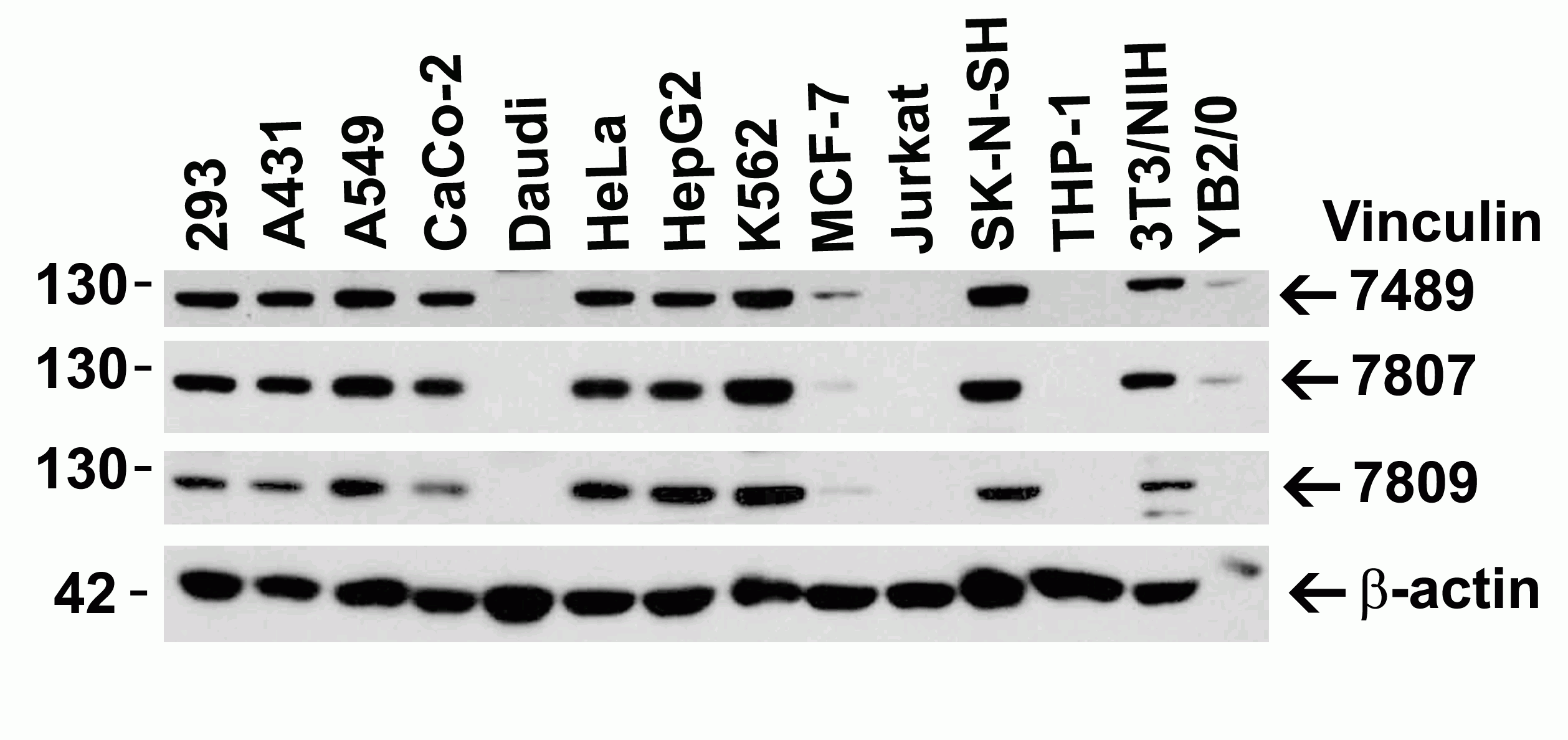

<strong>Figure 1 Independent Antibody Validation (IAV) via Protein Expression Profile in Human, Mouse and Rat Cell Lines</strong><br>Loading: 15 μg of lysates per lane.Antibodies: Vinculin 7489 (2 μg/mL), Vinculin 7807 (1 μg/mL), Vinculin 7809 (1 μg/mL), and beta-actin 3779 (1.5 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.

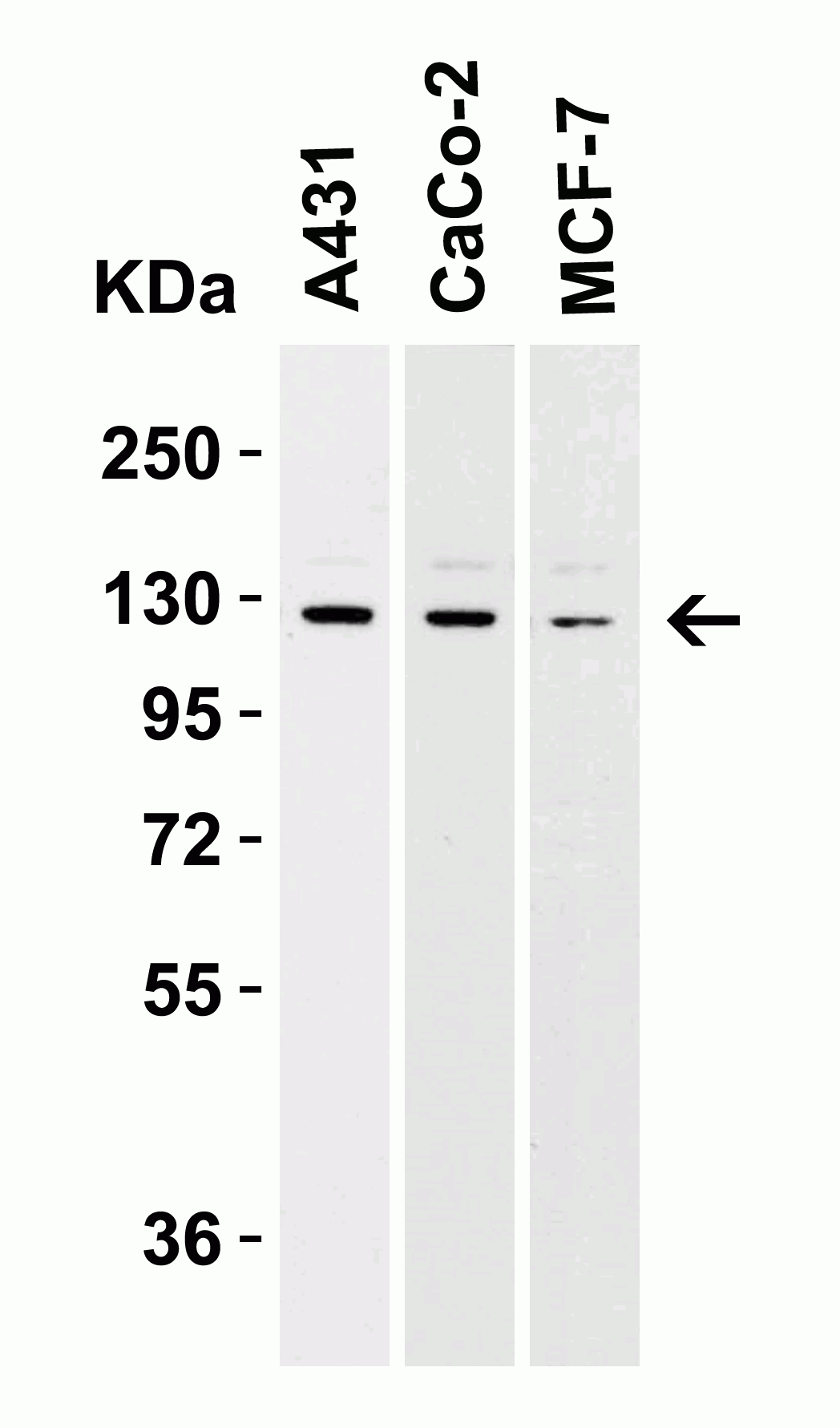

<strong>Figure 2 Western Blot Validation in Human Cell Lines</strong><br>Loading: 15 μg of lysates per lane.Antibodies: Vinculin 7807 (1 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.

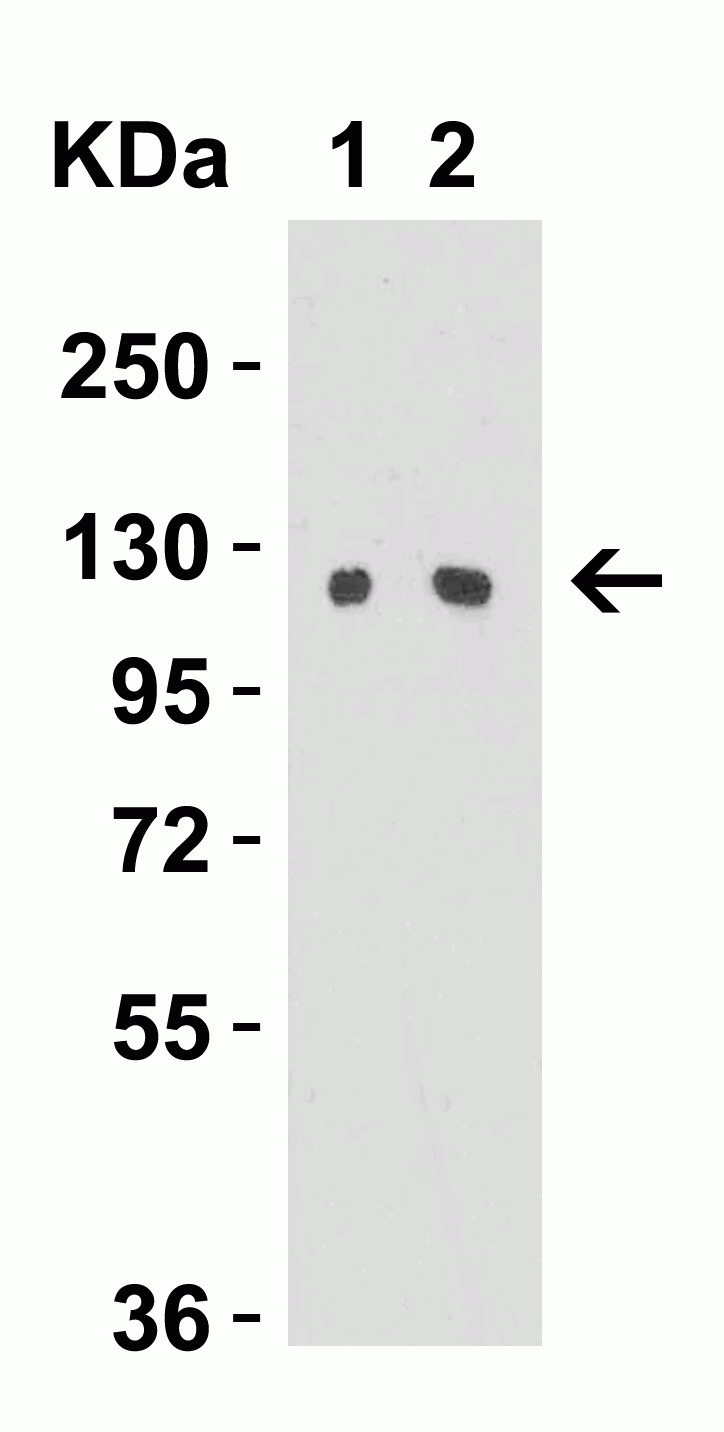

<strong>Figure 3 Western Blot Validation in PC3 Cell Lysate</strong><br>Loading: 15 μg of lysates per lane.Antibodies: Vinculin 7807 (Lane 1: 0.5 μg/mL and Lane 2: 1 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.

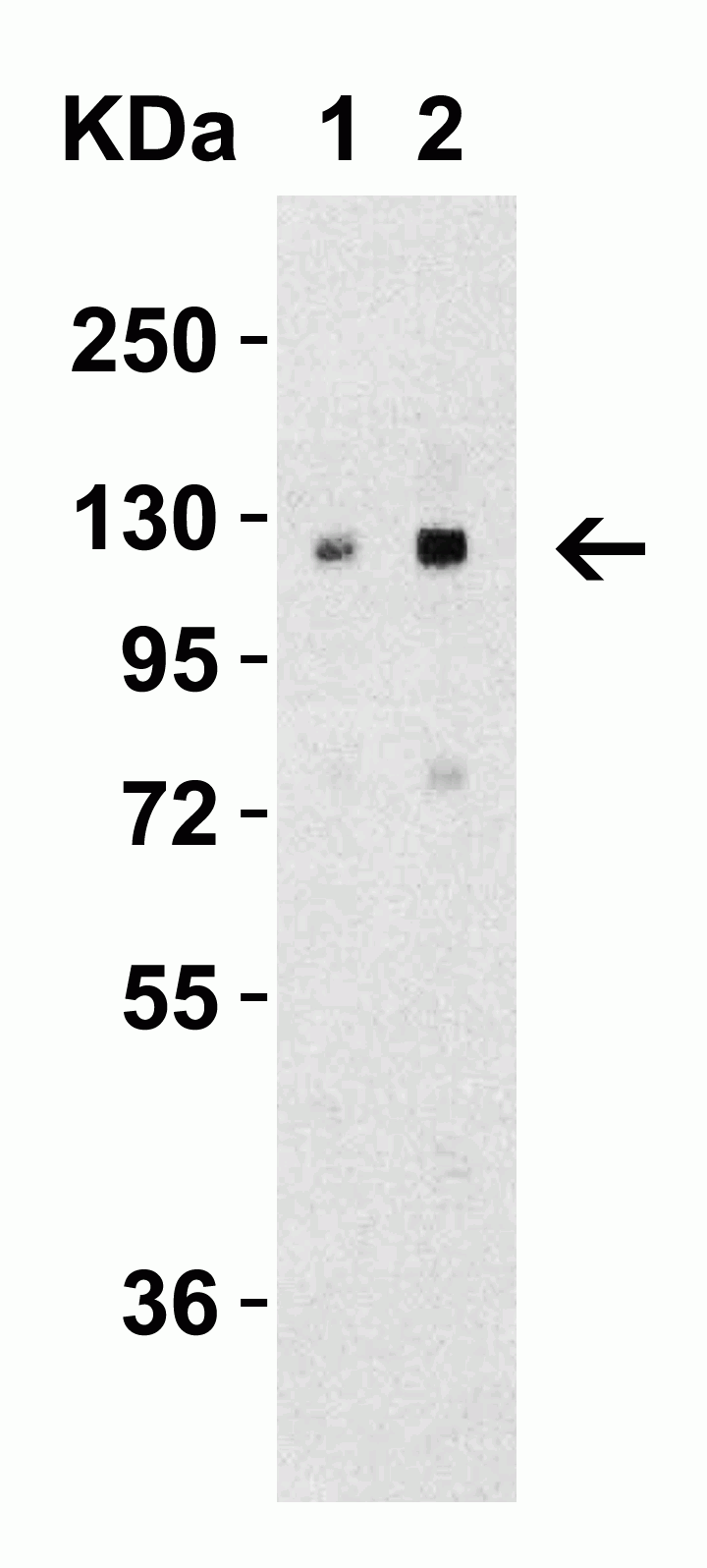

<strong>Figure 4 Western Blot Validation in Human Liver Tissue Lysate</strong><br>Loading: 15 μg of lysates per lane.Antibodies: Vinculin 7807 (Lane 1: 0.5 μg/mL and Lane 2: 1 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.

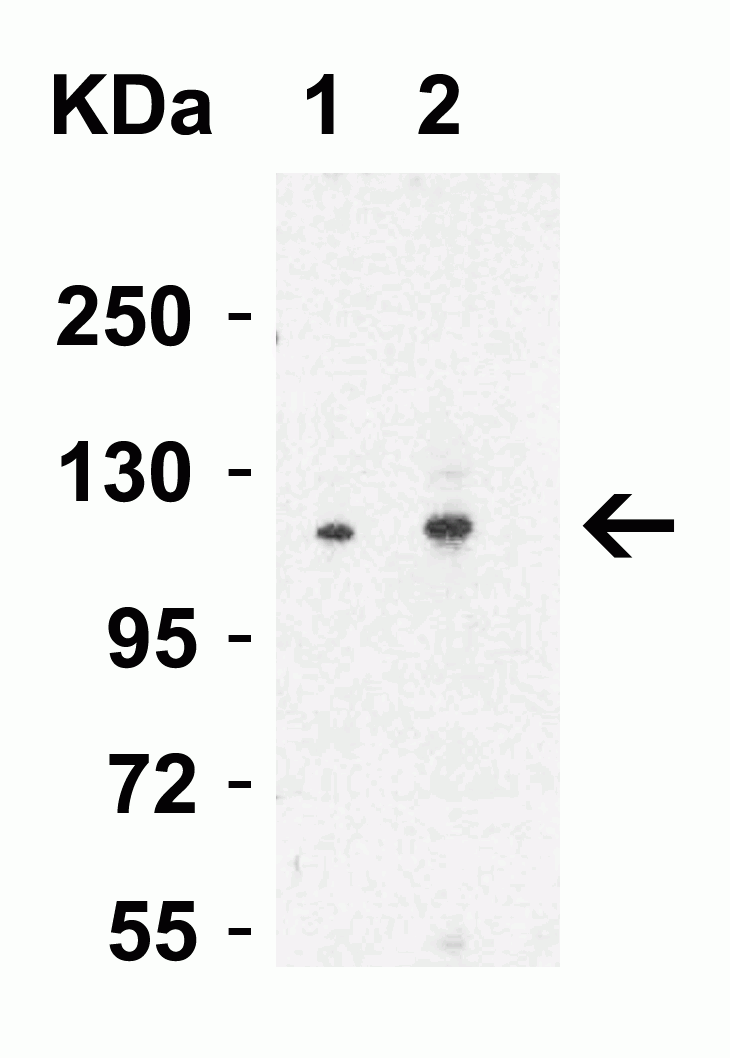

<strong>Figure 5 Western Blot Validation in Rat Liver Tissue Lysate</strong><br>Loading: 15 μg of lysates per lane.Antibodies: Vinculin 7807 (Lane 1: 0.5 μg/mL and Lane 2: 1 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.

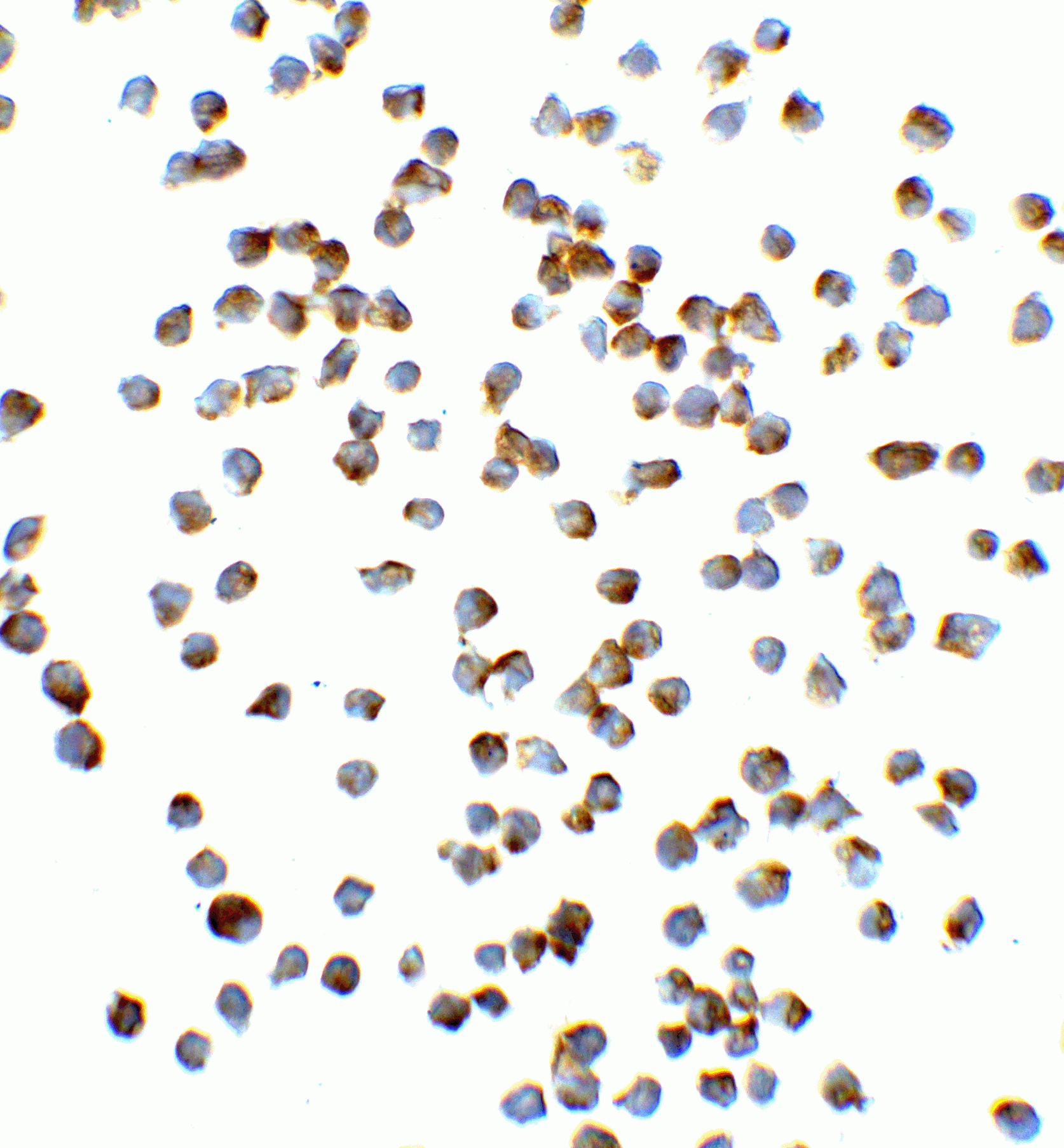

<strong>Figure 6 Immunocytochemistry Validation of Vinculin in Jurkat Cells</strong><br>Immunocytochemical analysis of Jurkat cells using anti-Vinculin antibody (7807) at 5 μg/ml. Cells was fixed with formaldehyde and blocked with 10% serum for 1 h at RT; antigen retrieval was by heat mediation with a citrate buffer (pH6). Samples were incubated with primary antibody overnight at 4°C. A goat anti-rabbit IgG H&L (HRP) at 1/250 was used as secondary. Counter stained with Hematoxylin.

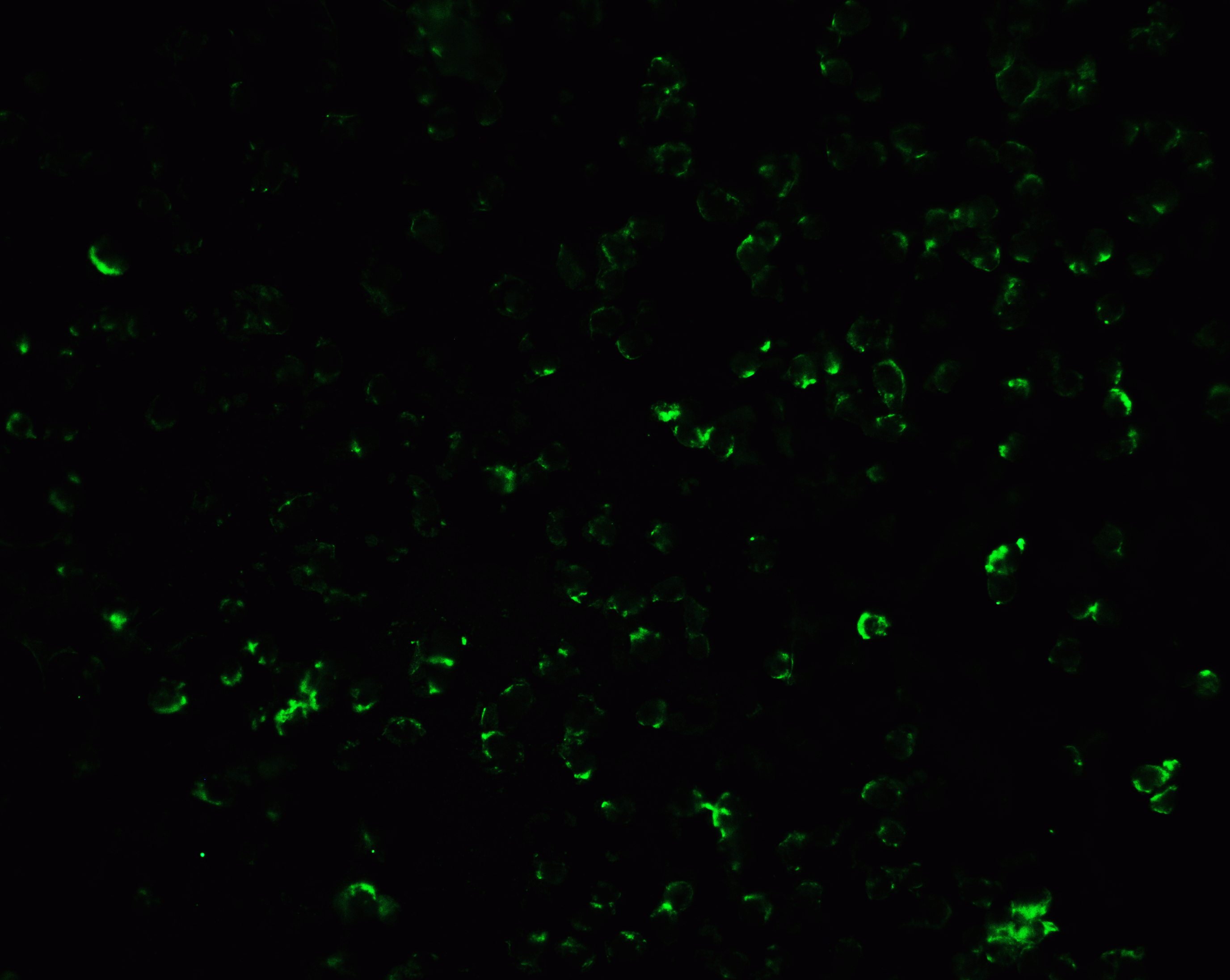

<strong>Figure 7 Immunofluorescence Validation of Vinculin in Jurkat Cells</strong><br>Immunofluorescent analysis of 4% paraformaldehyde-fixed Jurkat cells labeling Vinculin with 7807 at 20 μg/mL, followed by goat anti-rabbit IgG secondary antibody at 1/500 dilution (green).
Figure 1 Independent Antibody Validation (IAV) via Protein Expression Profile in Human, Mouse and Rat Cell Lines
Loading: 15 μg of lysates per lane.Antibodies: Vinculin 7489 (2 μg/mL), Vinculin 7807 (1 μg/mL), Vinculin 7809 (1 μg/mL), and beta-actin 3779 (1.5 μg/mL), 1h incubation at RT in 5% NFDM/TBST.Secondary: Goat anti-rabbit IgG HRP conjugate at 1:10000 dilution.
IAV
Trial Size

Vinculin Antibody

CATALOG NUMBER: 7807

Clonality:
Polyclonal
Tested Applications:
ELISA, ICC, IF, WB
Host Species:
Rabbit
Species Reactivity:
Human, Mouse, Rat
Conjugate:
Unconjugated
Specifications
Host Species:
Rabbit
Species Reactivity:
Human, Mouse, Rat
Immunogen:
Anti-Vinculin antibody (7807) was raised against a peptide corresponding to 23 amino acids near the amino terminus of human Vinculin.
Conjugate:
Unconjugated
Tested Applications:
ELISA, ICC, IF, WB
Application Note:
WB: 0.5-2 μg/mL; ICC: 5 μg/mL; IF: 20 μg/mL.
Antibody validated: Western Blot in human, mouse and rat samples; Immunocytochemistry in human samples; Immunofluorescence in human samples. All other applications and species not yet tested.
Specificity:
Vinculin antibody is human, mouse and rat reactive. At least three isoforms of Vinculin are known to exist.
Positive Control 1:
Cat. No. 1202 - A431 Cell Lysate
Positive Control 2:
Cat. No. 1201 - HeLa Cell Lysate
Positive Control 3:
Cat. No. 1282 - 3T3/NIH Cell Lysate
Predicted Molecular Weight:
Predicted: 124kD
Observed: 124kD
Validation:

Independent Antibody Validation in Cell lines (Figure 1) shows similar Vinculin expression profile in human, mouse and rat cell lines detected by three independent anti-Vinculin antibodies that recognize different epitopes, 7489 against C-terminus domain, 7807 against N-terminus domain and 7809 against central domain.  Vinculin proteins are detected in the most tested cell lines at different expression levels by the three independent antibodies.

Isoforms:
Human Vinculin has 3 isoforms, including isoform 2 (1134aa, 124kD), isoform 1 (1066aa, 117kD) and isoform 3 (222aa, 25kD). Mouse Vinculin has one isoform (1066aa, 117kD) and Rat Vinculin also has one isoform (1066aa, 117kD). 7807 can detect human, mouse and rat.
Purification:
Vinculin antibody is affinity chromatography purified via peptide column.
Clonality:
Polyclonal
Isotype:
IgG
physical-state:
Liquid
Buffer:
Vinculin antibody is supplied in PBS containing 0.02% sodium azide.
Concentration:
1 mg/mL
Storage Conditions:
Vinculin antibody can be stored at 4°C for three months and -20°C, stable for up to one year.
Ncbi Official Symbol:
VCL
Additional Names:
CMD1W, CMH15, Metavinculin, MVCL
Protein Accession Number:
NP_003364
Protein Gi Number:
4507877
Ncbi Gene Id Number:
7414
User Note:
Optimal dilutions for each application to be determined by the researcher.
Background:
Vinculin is a cytoskeletal protein that plays an important role in the regulation of focal adhesions and embryonic development (1). Three structural vinculin domains include an amino-terminal head, a short flexible proline-rich region and a carboxy-terminal tail (2). Expression of vinculin were shown to be affected by the level of actin expression (2,3). Vinculin deficiencies are associated with a decrease in cell adhesion and an increase in cell motility, suggesting a possible role in metastatic growth (4). Defects in VCL are the cause of cardiomyopathy dilated type 1W (CMD1W) (5).
Background Reference 1:
Burridge et al. Annu. Rev. Cell Biol.1988; 4:487-525.
Background Reference 2:
Gilmore et al. J. Cell Sci. 1992; 103:719-31.
Background Reference 3:
Deakin et al. PLoS One 2012; 7:e37990.
Background Reference 4:
Goldmann et al. Cell Biol. Int. 2013; Feb 1.
Citation 1:
Wang et al. AMPK is involved in the differential neonatal performance of chicks hatching at different time. Gen Comp Endocrinol. 2016;228:53-59. PMID: 26873631
